1. The selection of materials: The commonly used materials for sign piles include fiberglass, cement, and plastic steel. Before purchasing, the material of sign piles should be determined according to the requirements of Party A or technical information.

2、 規格的確定，標志樁規格型號眾多，按照寬度、高度、厚度、印刷可以分成很多種，在選購之前應講這些標準都一一列清。

2. The determination of specifications includes numerous types of marker piles, which can be divided into many types based on width, height, thickness, and printing. Before purchasing, these standards should be clearly listed one by one.

3、 廠家的選定，所有都確定了就該選擇廠家了，一定要選擇老牌的、的生產廠家。

3. The selection of manufacturers, once everything is confirmed, it's time to choose a manufacturer. It's important to choose an established and professional manufacturer.

下面就玻璃鋼標志樁的產品規格做一介紹：

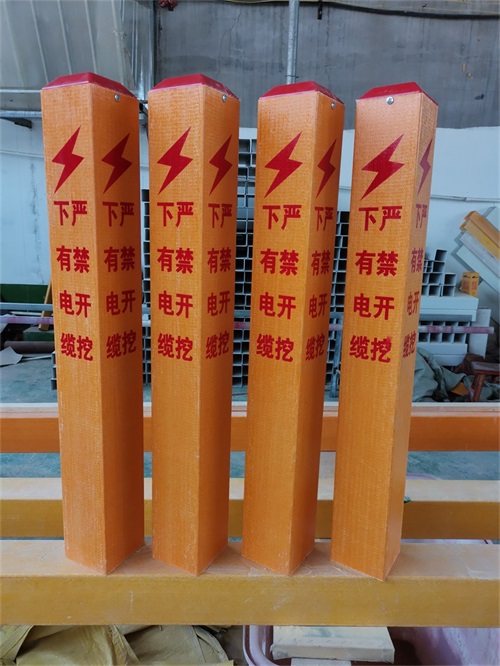

Below is an introduction to the product specifications of fiberglass marker piles:

一、玻璃鋼標志樁規格

1、 Specification of fiberglass marker piles

1、常用形狀：方形、圓形、三角形

1. Common shapes: square, circle, triangle

2、常用高度：1m、1.2m、1.4m、1.5m

2. Common heights: 1m, 1.2m, 1.4m, 1.5m

3、常用寬度：10cm、12cm、14cm、15cm

3. Common widths: 10cm, 12cm, 14cm, 15cm

（可加工定制各種規格）

(Can process and customize various specifications)

二、玻璃鋼標志樁的基本特性：

2、 Basic characteristics of fiberglass marker piles:

（1）玻璃鋼標志樁采用高強玻璃纖維與專用樹脂經一次性拉擠或模壓成型。

(1) The fiberglass marker pile is made of high-strength glass fiber and specialized resin, which are one-time extruded or molded.

（2）玻璃鋼標志樁強度高、質量輕、耐各種物質腐蝕，故使用壽命長達30年。

(2) Fiberglass marker piles have high strength, light weight, and resistance to various substances, resulting in a service life of up to 30 years.

（3）玻璃鋼標志樁外表美觀、顏色艷麗，產品可加工各種顏色，顏色一次成型永不脫落，字體圖案清晰。

(3) The appearance of fiberglass marker piles is beautiful and the colors are bright. The products can be processed in various colors, and the colors are formed in one go without falling off. The font and pattern are clear.

（4）玻璃鋼標志樁密度低、重量輕，便于運輸安裝，可大大減少勞動強度、提高工作效率。

(4) Fiberglass marker piles have low density and light weight, making them easy to transport and install, greatly reducing labor intensity and improving work efficiency.

（5）玻璃鋼標志樁自然防盜，該材料無回收價值，自然防盜。

(5) The fiberglass marker pile is naturally anti-theft, and this material has no recycling value, making it naturally anti-theft.

（6）玻璃鋼標志樁性能優良、加工方便、用途廣泛，其物理性能如剛性、彈性、耐腐蝕、抗老化性能優異。

(6) FRP marker posts have excellent performance, convenient processing and wide use, and their physical properties such as rigidity, elasticity, corrosion resistance and aging resistance are excellent.

三、玻璃鋼標志樁設置規范（在非水泥路面）

3、 Specification for setting up fiberglass marker piles (on non cement road surfaces)

1、玻璃鋼標志樁需設置在管位正上方，要求樁體表面清潔、警示字跡清晰，如管位正上方情況不允許放置玻璃鋼標志樁可以對其進行平移，需備注說明平移距離。短樁可以設置在低于40cm的綠化帶中，長樁設置在高于40cm的綠化帶或田地中。

1. Fiberglass marker piles should be installed directly above the pipe position, and the surface of the pile should be clean and the warning words should be clear. If it is not allowed to place fiberglass marker piles directly above the pipe position, they can be translated, and the translation distance should be noted. Short stakes can be set in green belts below 40cm, while long stakes can be set in green belts or fields above 40cm.

2、玻璃鋼標志樁需水平垂直埋設在地下管道正上方，可見長度內左右偏斜不大于2公分。

2. The fiberglass marker pile should be buried horizontally and vertically above the underground pipeline, with a deviation of no more than 2 centimeters from the left to the right within the visible length.

3、玻璃鋼標志樁樁頂離地面高度55公分（短樁）或85公分（長樁）偏差不大于5公分。

3. The deviation between the top of the fiberglass marker pile and the ground shall not exceed 5 centimeters for short piles or 85 centimeters for long piles.

4、玻璃鋼標志樁樁間距為50m（縱向偏差不大于0.15m），與管位中心線偏差不大于0.25m。在地下管道起點、終點、三通、轉角處必須埋設標記樁。

4. The spacing between fiberglass marker piles is 50m (with a longitudinal deviation of no more than 0.15m), and the deviation from the centerline of the pipe position is no more than 0.25m. Mark piles must be buried at the starting and ending points, tees, and corners of underground pipelines.

5、玻璃鋼標志樁樁體上的警示標語以及聯系電話必須面向馬路或者行人時間可以看到的方位。

5. The warning signs and contact phone numbers on the fiberglass marker pile must face the road or the direction that pedestrians can see at the first time.
